Brixwell Awning Operator Contemporary Style Offset Link Arm, Right Hand, Metal Construction with Mill Finish, 5-1/16" Mounting Hole Spacing, 2-1/2" Link Arm Hole Spacing, 3/8" Link End Hole

The Brixwell Awning Operator Contemporary Style Offset Link Arm is built for use with awning and casement windows, providing reliable support for crank operation in residential and commercial applications. Made from metal with a mill finish, this operator is designed for long-lasting function and blends with standard window hardware systems. It features a Right-hand offset link arm that helps maintain proper alignment when operating windows, allowing smooth opening and closing. The mounting hole spacing measures 5-1/16", providing a secure fit with window frames, while the link arm hole spacing of 2-1/2" ensures correct connection to operator mechanisms. With a base hole center to edge dimension of 1-7/16" and an offset hole spacing of 1/2", the design offers accurate alignment and compatibility with a wide range of awning hardware. The operator is also equipped with a 3/8" link end hole that attaches easily to common window crank systems. Suitable for contemporary style awning windows, this operator can be used in homes, offices, and other building projects where casement or awning window function is needed. Its offset arm type makes it a versatile choice for both replacement and new installations, working seamlessly with existing window operator setups. This operator is an essential component for window repair or replacement, providing the correct fit for offset arm systems without requiring adjustments.

• MATERIAL AND FINISH: Built from metal with a mill finish, this operator fits awning and casement window setups, coordinating with standard hardware and providing proper support for smooth crank operation in residential or commercial projects.
• HAND TYPE: Designed as a Right-hand offset link arm operator, this unit provides correct orientation for window hardware configurations where Right-hand operation is required, ensuring accurate alignment with the window frame.

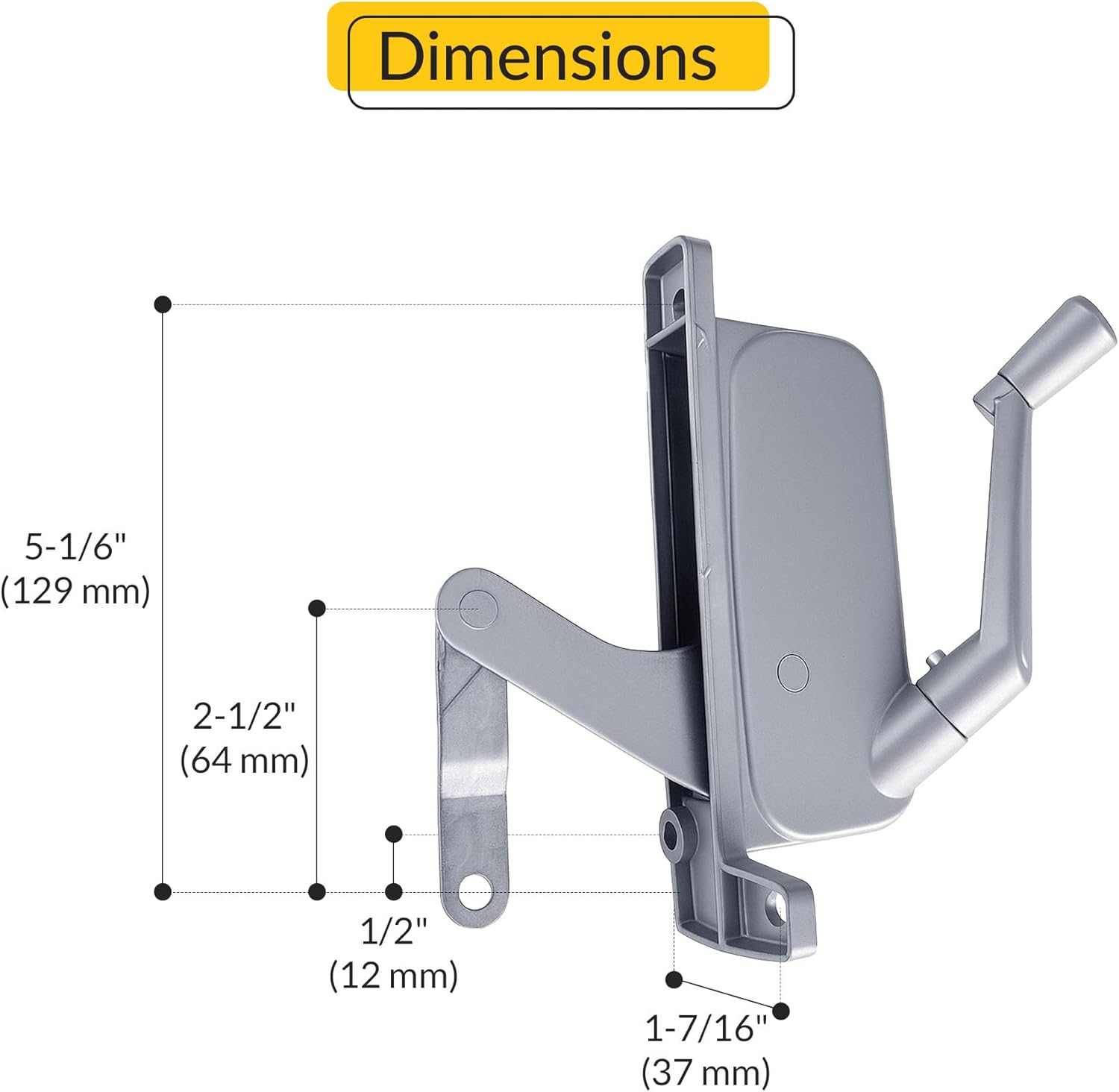

• MOUNTING HOLE SPACING: Features 5-1/16" mounting hole spacing, allowing secure attachment to window frames and compatibility with contemporary style awning operator systems used in both home and office environments.
• LINK ARM HOLE SPACING: Built with 2-1/2" link arm hole spacing, this design connects effectively with operator mechanisms, supporting reliable function in awning hardware and casement operator systems.
• BASE HOLE DIMENSION: Measures 1-7/16" from base hole center to edge, giving installers precise measurements that match standard window operator configurations, making installation straightforward and accurate.
• OFFSET HOLE SPACING: Includes 1/2" offset hole spacing that helps align the offset arm correctly with window operator systems, supporting smooth and balanced function during window opening and closing operations in residential or commercial setups.
• LINK END HOLE: Equipped with a 3/8" link end hole, this operator works with common window crank hardware, making it compatible with existing awning arms, casement operators, and window operator mechanisms.
